| Usage: | Force Measurement | Structure: | Miniature S Type Load Cell |
|---|---|---|---|
| Capacity: | 200g/500g | Force Direction: | Tension And Compression |
| Type: | Micro Force Transducer | Connection: | M3 Tapped Hole |
| Output: | Analog Sensor |

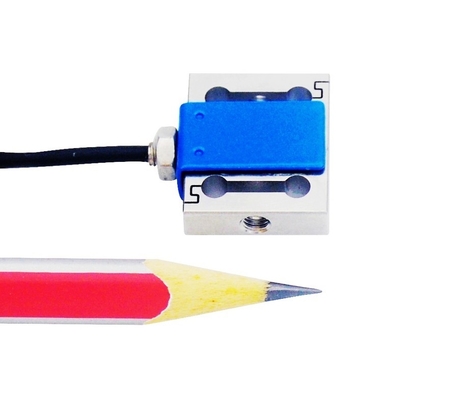

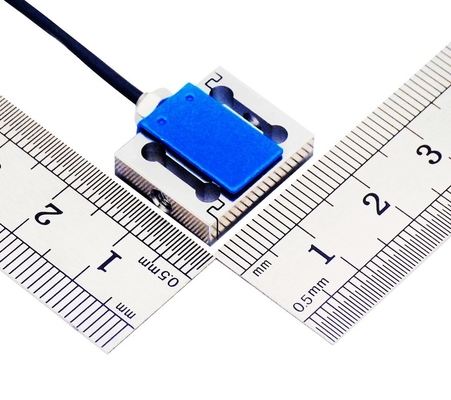

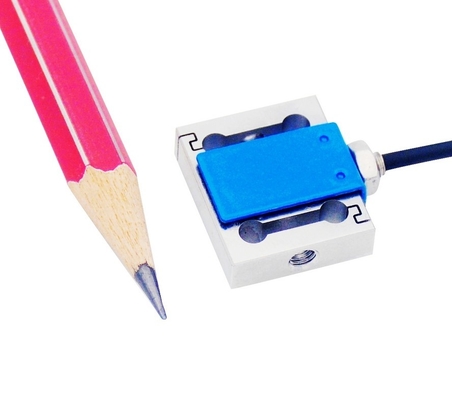

Micro Tension Load Cell 200g 500g Miniature Jr. S-beam Force Transducer 5N 2N
The FSMY-200g/500g miniature compression and tension load cell is a precision-engineered device designed to meet the demands of accurate force measurement across various industries. Featuring M3 tapped holes on both sides of the transducer, this load cell allows for effortless mounting of threaded rods, eye bolts, load buttons, or hooks, ensuring adaptability for a wide range of applications. Constructed from high-quality stainless steel, the FSMY-200g/500g is built to withstand rigorous use while providing reliable push and pull force measurements. Its compact s-beam design makes it an ideal choice for applications where space is limited but precision is critical. Whether used in industrial settings or research laboratories, this load cell offers unmatched versatility and durability.
At the core of the FSMY-200g/500g’s performance is advanced strain gauge technology, which ensures exceptional accuracy and consistency. With a resolution of 0.05g/0.1g and a maximum non-linearity of just 0.1% of the full scale, this load cell delivers precise and reliable results for even the most demanding tasks. Each unit undergoes rigorous testing and inspection before shipment, guaranteeing that customers receive a product that meets the highest standards of quality and performance. This meticulous attention to detail ensures the FSMY-200g/500g is a dependable solution for applications requiring high accuracy, such as spring testing, robotics, medical devices, and precision assembly.
The FSMY-500g’s compact and lightweight design makes it perfect for integration into systems where space and precision are paramount. It is widely used in industries such as textiles, robotics, and medical device manufacturing, where accurate force feedback and measurement are essential. Combining small size, versatility, and high performance, the FSMY-200g/500g load cell is the ultimate solution for professionals seeking reliable force measurement capabilities. Whether for industrial automation, research, or development, this load cell is designed to deliver consistent and dependable performance, making it a top choice for precision force measurement needs.

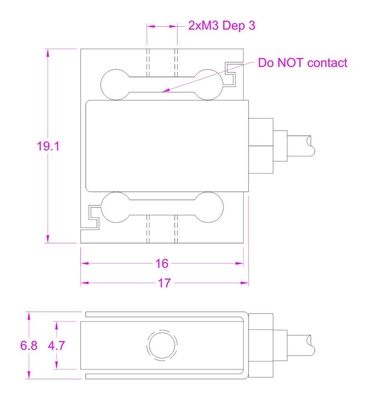

Dimensions(unit in "mm")
| Capacity |
2N / 200g 5N / 500g |
| Rated output | 2.0mV/V |
| Excitation | 3-12V |
| Zero balance | ±0.1mV/V |
| Nonlinearity | ±0.1% of full capacity |
| Hysteresis | ±0.1% of full capacity |
| Nonrepeatability | ±0.05% of full capacity |
| Creep(5min) | ±0.1% of full capacity |
| Safe overload | 120% of full capacity |
| Ultimate overload | 150% of full capacity |
| Compensated temperature | 0...+40oC |
| Operating temperature | -10...+60oC |
| Temperature shift zero | ±0.03% R.O./oC |
| Temperature shift span | ±0.02% R.O./oC |
| Input resistance | 350±30 ohms |
| Output resistance | 352±3 ohms |
| Insulation resistance | >2000M ohms |
| Ingress protection | IP50 |
| Material of element | Stainless steel |
| Cable | Ø2*3000mm 4-core shielded |
| Wiring code |
Compression@ Green--Signal+ White--Signal- |
A Force Sensor is a transducer that converts mechanical load into mV signal proportional to the applied force.The acting force causes deformation of the measuring element,the bonded strain gage deforms accordingly which will cause the resistance change of the wheatstone bridge,under constant power supply, the output signal between Sig+ and Sig- will change proportionally,thus the load/force can be measured by measuring the output signal from the transducer.
Load cell output: = (Power supply * Rated output) * Load / Capacity
Rated output of Jr s-beam load cell FSMY-500g is around 2.0mV/V.
Power supply of S type force sensor FSMY-500g is normally within 3-12V.
Load / Capacity is within 0-1.
So the output range of S beam force transducer FSMY-500g is normally within -24mV...+24mV for tension and compression force measurement.
A load cell amplifier can be used to convert mV signal into -5-5V / 0-10V / 4-20mA for easy signal processing,taking FSMY-500g and FSC(-5-5V)-24V for example,the load-voltage relationship will be 0-500g compression load VS 0-5V output, 0-500g tension load VS 0-(-5V) output,which is linear regardless of the measurement error.
