| Channel: | Fx/Fy | Usage: | Two-dimensional Force Measurement |
|---|---|---|---|
| Type: | 2-axis Force Sensor | Capacity: | 10kg 20kg 50kg 100kg |
| Principle: | Strain Gauge Load Cell |
Gear Lever Load Cell 1kN 500N 200N 100N Stick Shift Force Sensor

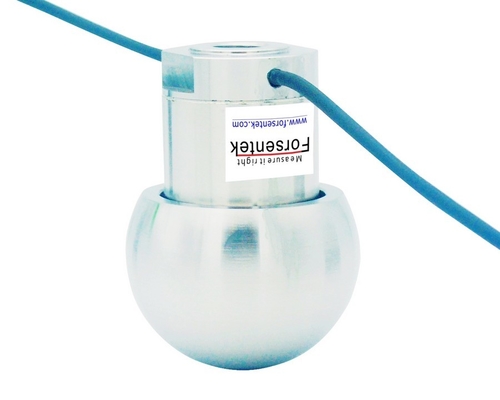

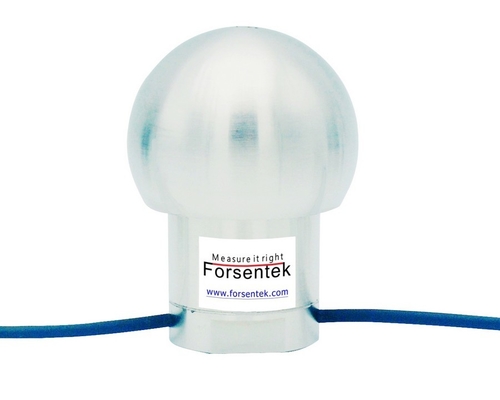

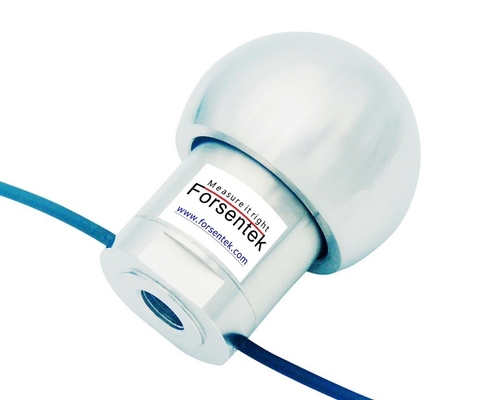

The F2Q Gear Shift Knob Load Cell is a meticulously engineered tool built from durable stainless steel, offering precise two-dimensional force measurement across the Fx and Fy axes. With four available rated capacities—10kg, 20kg, 50kg, and 100kg—it is highly adaptable to various testing scenarios. This specialized gear effort sensor is designed to replace the standard gear knob on a gear lever, allowing it to accurately measure the force applied during gear-shifting operations. Its rugged construction ensures long-lasting performance, while its compact and user-friendly design facilitates easy integration into existing setups. Perfect for automotive testing and development, the F2Q load cell provides reliable and accurate data, making it an indispensable tool for evaluating and enhancing gear-shifting efficiency and performance.

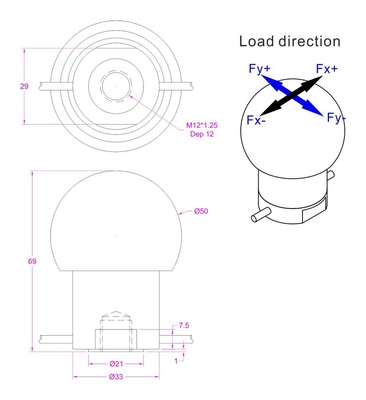

Dimensions
Ordering code
| Part No. | Capacity |
| Fx=Fy | |
| F2Q-10kg | 10kgf |
| F2Q-20kg | 20kgf |
| F2Q-50kg | 50kgf |
| F2Q-100kg | 100kgf |
Specifications
| Rated Capacity |
10kg 20kg 50kg 100kg (100N 200N 500N 1000N) |
| Rated output | 1.5mV/V |
| Excitation | 3-15V |
| Zero balance | ±0.05mV/V |
| Non-linearity | ±0.3% of full scale |
| Hysteresis | ±0.3% of full scale |
| Non-repeatability | ±0.2% of full scale |
| Creep(5min) | ±0.05% of full scale |
| Safe overload | 150% of full scale |
| Ultimate overload | 200% of full scale |
| Compensated temperature | 0...+40oC |
| Operating temperature | -10...+60oC |
| Temperature shift on zero | ±0.02% R.O./oC |
| Temperature shift on span | ±0.02% R.O./oC |
| Input resistance | 380±30 ohms |
| Output resistance | 350±30 ohms |
| Insulation resistance | >2000M ohms |
| Ingress protection | IP62 |
| Material of element |
Stainless steel |
| Cable | 2 x Ø3*3000mm 4-core shielded cable |
| Wiring code |
Red--E+ Black--E- Green--S+ White--S- |
Gear Lever Load Cell 1kN 500N 200N 100N Stick Shift Force Sensor
2-axis sensor F2Q measures forces simultaneously in Fx and Fy axis. Each axis provides a full bridge output proportional to the applied force and requires no mathematical manipulation. The acting force causes deformation of the elastomer, the bonded strain gauge deforms accordingly which will cause the resistance change of the wheatstone bridge, under constant power supply, the output signal between Sig+ and Sig- will change proportionally, thus the load/force can be measured by measuring the output signal from the transducer.
Load cell output: = (Power supply * Rated output) * Load / Capacity
Rated output of stick shift sensor F2Q is around 1.5mV/V.
Power supply of gear shift load cell F2Q is normally within 3-12V.
Load / Capacity is within 0-1.
So the output range of Biaxial Force Sensor F2Q is normally within -18mV...+18mV for bidirectional force measurement in each axis.
Example: Multi axis load cell F2Q-50kg with 1.0mV/V sensitivity powered by 10V DC, the output range is -10mV...+10mV.
A multi-channel signal conditioner can be used with biaxial force sensor F2Y to deliver -5~5V, 0-10V or 4-20mA output.
Example: 2-axis sensor F2Q-100kg working with LC2A(-10-10V)-24V amplifier, the Force-Voltage relationship in each axis will be 0-100kg load in Fx+/Fy+ direction VS 0-10V output, 0-100kg load in Fx-/Fy- direction VS 0-(-10V) output, which is linear regardless of the measurement error.
