| Usage: | Torque And Speed Measurement | Output: | ±5V/±10V/4-20mA |
|---|---|---|---|
| Torque Direction: | CW/CCW | Torque Range: | 0-10000NM |
| Speed Range: | 0-2000RPM | Structure: | Flange-to-Flange |

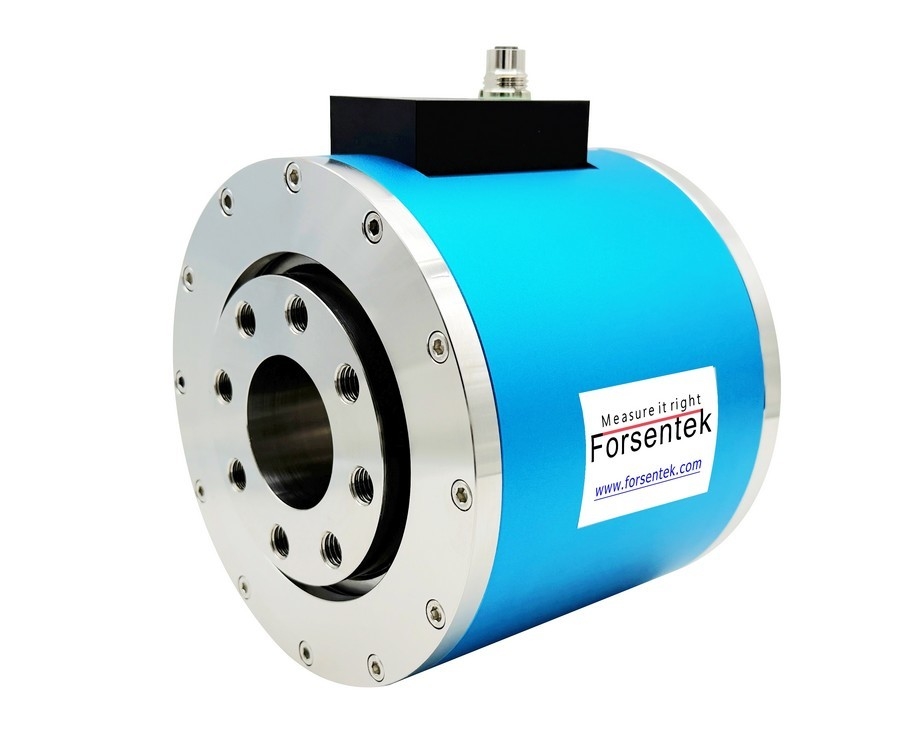

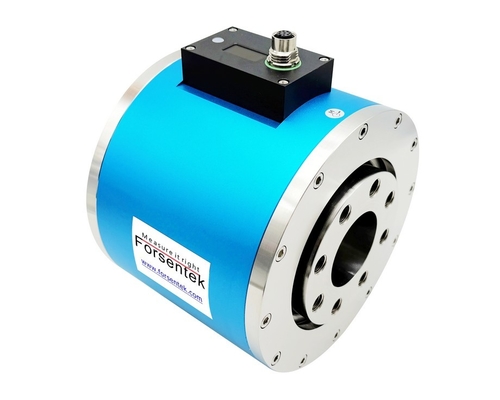

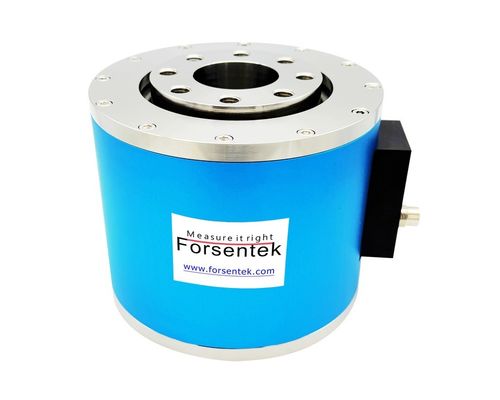

Hollow Flange Rotary Torque Transducer 0-10kNm With Speed Measurement
The FYTF Hollow Flange Type Rotary Torque Sensor is a cutting-edge device designed to provide precise and reliable torque measurement through advanced non-contact transformer technology. Unlike conventional slip-ring sensors, the FYTF employs a contactless signal transmission method, using coils to transfer data between the rotating shaft and the fixed outer body. This innovative design eliminates mechanical wear, ensuring exceptional durability and maintenance-free operation, even in the most demanding environments. The FYTF dynamic torque meter is available in rated capacities of 2kNm, 3kNm, 5kNm, and 10kNm, with the capability to measure rotational speeds of up to 2000 RPM. Both the torque and speed channels are equipped with built-in circuits that deliver output signals in 0-5V, 0-10V, or 4-20mA formats, proportional to the measured torque and speed. This simplifies signal processing and integration into existing systems, while the flange-to-flange design ensures easy installation between drive and load components.
The FYTF torque transducer is particularly well-suited for applications such as measuring the torque and speed of power take-off (PTO) shafts in agricultural and forestry machinery, where it ensures the safe and efficient operation of connected equipment. Built on Forsentek’s proven sensor technology, the FYTF meets the rigorous demands of torque, speed, and angle measurement across a wide range of industries, including industrial testing, engine and plant construction, automotive, and motorsports. Its robust construction and high precision make it a reliable choice for critical applications. Additionally, the FYTF rotating torque sensor can be easily customized to meet specific requirements, offering unparalleled versatility for specialized applications. Whether used in standard configurations or tailored setups, the FYTF delivers consistent and accurate performance, making it an indispensable tool for professionals seeking dependable torque measurement solutions in challenging environments.
Specifications
| Capacity |
2kNm 3kNm 5kNm 10kNm |
| Max rotating speed | 2000RPM |
| Rated output | 0-5V / 0-10V / 4-20mA |
| Sampling rate | 500Hz |
| Excitation | 24V DC (or 12V DC) |
| Nonlinearity | ±0.5% R.O. |
| Hysteresis | ±0.5% R.O. |
| Nonrepeatability | ±0.2% R.O. |
| Creep(5min) | ±0.1% R.O. |
| Safe overload | 150% F.S. |
| Ultimate overload | 200% F.S. |
| Operating temp. | -10...+60oC |
| Temp. Shift Zero | ±0.02% of R.O./°C |
| Temp. Shift Span | ±0.02% of R.O./°C |
| Ingress protection | IP40 |
| Material of element | Stainless steel |
| Material of housing | Aluminum |
| Cable | Ø6*5000mm with mating connector |
Hollow Flange Type Rotary Torque Sensor 0-10kNm With Speed Encoder
